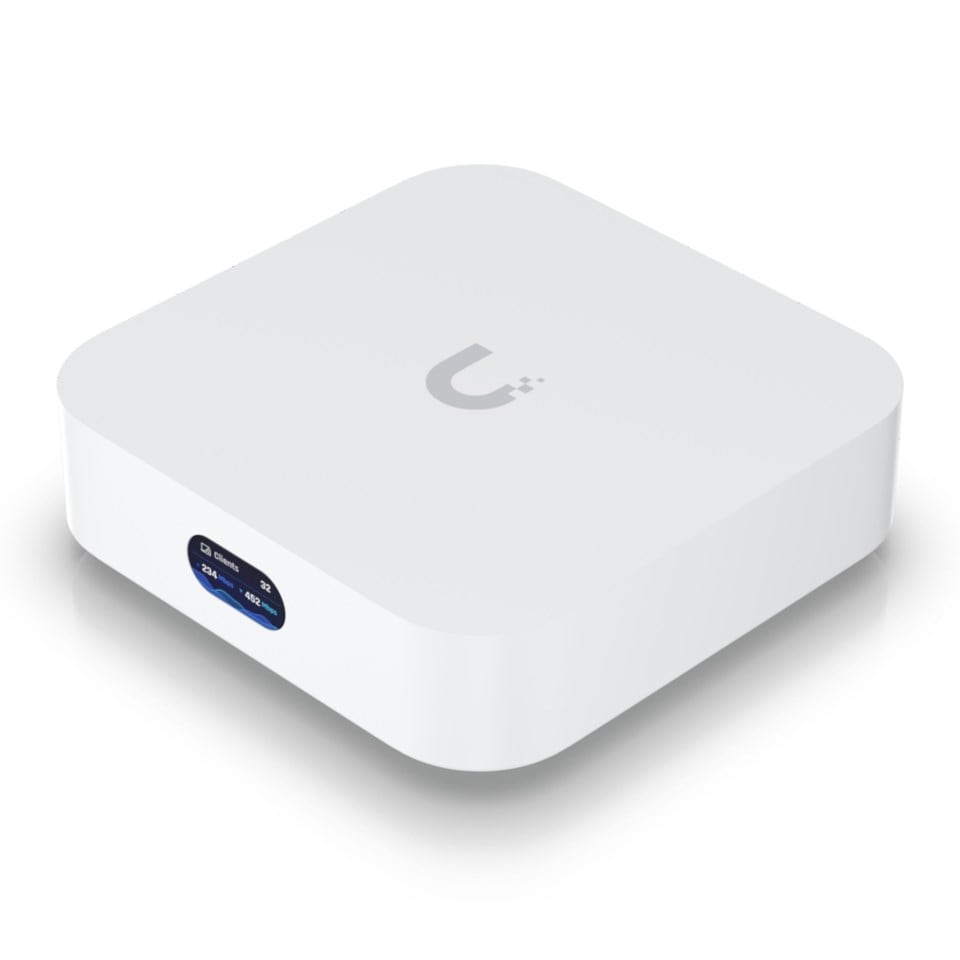

Ubiquiti UniFi Express Gateway och Accesspunkt med Wifi 6

Specifikationer

Mechanical
Dimensions: 98x98x30 mm
Weight: 302 g
Enclosure material: Polycarbonate

Hardware
Networking interface: (1) GbE RJ45 WAN port, (1) GbE RJ45 LAN port
Management interface: Ethernet
Bluetooth
Power method: USB type C (5 V DC/3 A)
Max. power consumption: 10 W
Max. WiFi TX power: 2.4 GHz (22 dBm), 5 GHz (25 dBm)

MIMO
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 2 x 2 (DL/UL MU-MIMO)

Throughput rate
2.4 GHz: 573.5 Mbps
5 GHz: 2.4 Gbps

Antennas
(2) Internal 2.4G/5G WiFi dual-band antenna
(1) Internal 2.4G single-band BT antenna

Software
WiFi standards: 802.11a/b/g, WiFi 4/WiFi 5/WiFi 6
Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID: Console mode: 3 per band
Standard AP: 8 per band
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest traffic isolation: Supported
Concurrent clients: 60+
Zero wait DFS: Yes

Supported Data Rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4): 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

Application Requirements
UniFi Network: Version 8.0.7 and later
